BS1140/24EX - 4"

SKU: BS1140/24EX
  • 2" 6 wire hydraulic hose capability
  • 4" 4 wire hydraulic Hose capability
  • Shoe cluster auto indexing - auto lubrication
  • Large aperture
  • 24 VDC supply
  • Standard swaging range 16 to 78mm diam.
  • Extended swaging range 6.5 to 136mm diam.
$0.00 inc GST

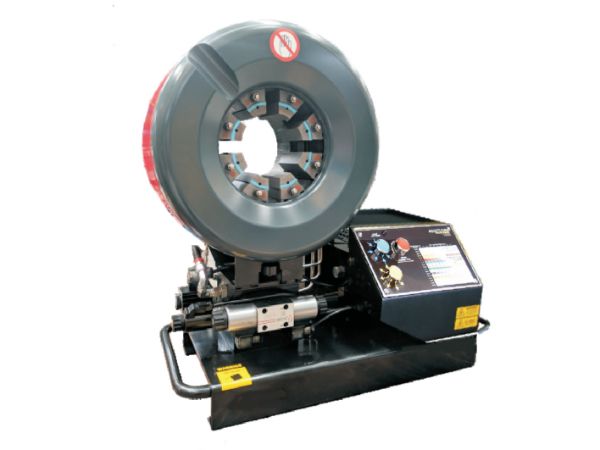

A precision 4" nom. swage press for the production of hose assemblies of heavy construction.  Supplied with software enabling rapid retrieval of crimp data and utilisation of safety/product integrity systems.  The press is of a design with a large aperture enabling easy insertion/removal of swept bent hose couplings.  This press utilises dies of the “pinless” design.

A precision 4" nom. swage press for the production of hose assemblies of heavy construction.  Supplied with software enabling rapid retrieval of crimp data and utilisation of safety/product integrity systems.  The press is of a design with a large aperture enabling easy insertion/removal of swept bent hose couplings.  This press utilises dies of the “pinless” design.

Products specifications
Swaging Range (mm) with Standard Die Set16 to 78
Extended Swaging Range (mm) with Optional Die(s)6.5 to 136
Max. Die Set Opening (mm + Die Set Size)55
Radial Swaging Force (kN)4100
Cycle Speed (Full Stroke-Complete Cycle sec.)24

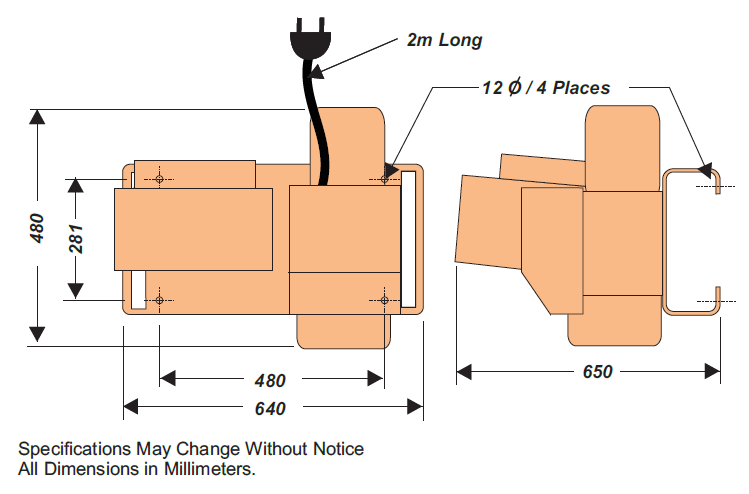

Dimensions (mm)600x420x650 mm
Weight (kg without Dies & Oil)180
Supply (Volts)12 VDC
Supply (Amps)150
Power (kW)1.5
Rated Pressure (bar)300
Pump Flow Rate (L/min)6
Reservoir Capacity (Litres)5
Filtration (um)100
Hose Diameter Capability4"
Hose Wire Capability6, 4, 2, 1

Standard Die Set

Product Number

Range (mm)

BS50SDS

11 die sets supplied as a package to allow infinite swaging between 16 to 78mm finished swage size.

For this crimper this die set must be used in conjunction with the SP140-50 Spacer Set.

50-16

16 – 20

50-19

19 – 24

50-22

22 – 27

50-26

26 – 31

50-31

31 – 37

50-36

36 – 42

50-41

41 – 48

50-47

47 – 54

50-53

53 – 60

50-60

60 – 68

50-68

68 – 78

Spacer Set SP140-50

SP140-50

The SP140-50 Spacer Set allows for the use of more economical Type 50 die sets for swaging diameters less than 90mm. For diameters greater than 90mm, the SP140-50 Spacer Set is removed and the Type 140 die sets are used.

Products specifications
Swaging Range (mm) with Standard Die Set16 to 78
Extended Swaging Range (mm) with Optional Die(s)6.5 to 136
Max. Die Set Opening (mm + Die Set Size)55
Radial Swaging Force (kN)4100
Cycle Speed (Full Stroke-Complete Cycle sec.)24
Dimensions (mm)600x420x650 mm
Weight (kg without Dies & Oil)180
Supply (Volts)12 VDC
Supply (Amps)150
Power (kW)1.5
Rated Pressure (bar)300
Pump Flow Rate (L/min)6
Reservoir Capacity (Litres)5
Filtration (um)100
Hose Diameter Capability4"
Hose Wire Capability6, 4, 2, 1
