BS1140/220M/SPORT - 4"

SKU: BS1140/220M/SPORT
  • 2" 6 wire hydraulic hose capability
  • 4" 4 wire hydraulic hose capability
  • Shoe cluster auto Indexing - auto lubrication
  • 220 VAC supply
  • Standard swaging range 16 to 78mm diam.
  • Extended swaging range 6.5 to 136mm diam.
$0.00 inc GST

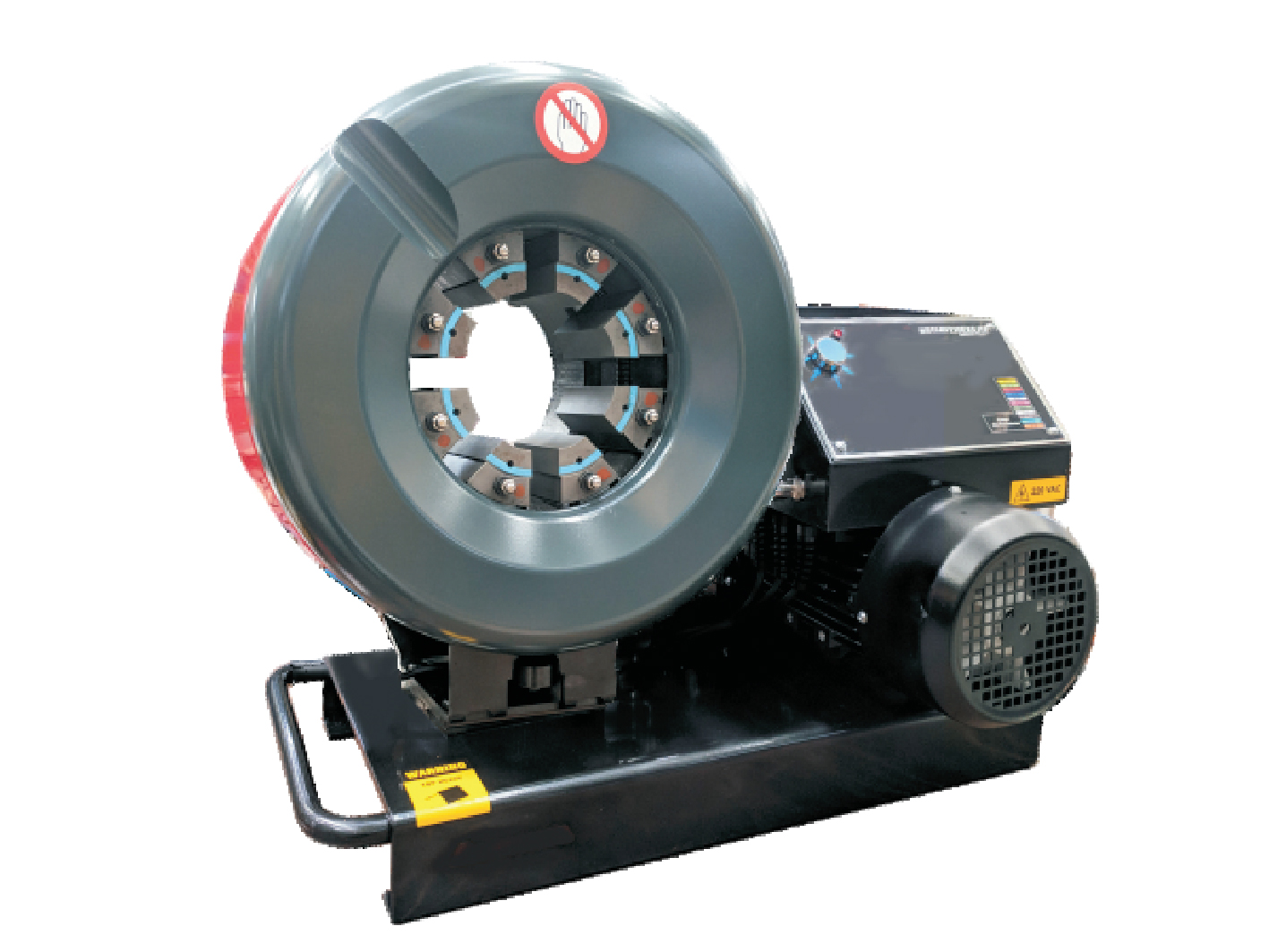

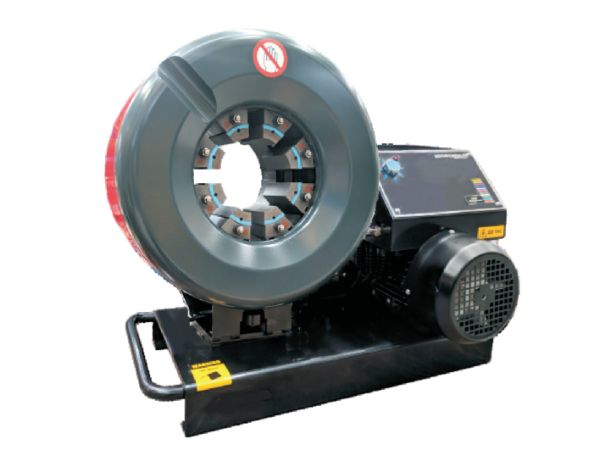

A precision 4" nom. swage press for the production of hose assemblies of all types.  Designed specifically for portability, with versatile single phase supply, soft start and twin pumps.  Robust, simple design with performance in mind, without electrical switchgear, employing single button operation with rapid automatic full retract after completion of swage.  Patented rotating/auto lube shoe cluster provides continuous >97% crimping efficiency with automatic self lubrication.

A precision 4" nom. swage press for the production of hose assemblies of all types.  Designed specifically for portability, with versatile single phase supply, soft start and twin pumps.  Robust, simple design with performance in mind, without electrical switchgear, employing single button operation with rapid automatic full retract after completion of swage.  Patented rotating/auto lube shoe cluster provides continuous >97% crimping efficiency with automatic self lubrication.

Products specifications
Swaging Range (mm) with Standard Die Set16 to 78
Extended Swaging Range (mm) with Optional Die(s)6.5 to 136
Max. Die Set Opening (mm + Die Set Size)55
Radial Swaging Force (kN)4100
Cycle Speed (Full Stroke-Complete Cycle sec.)25

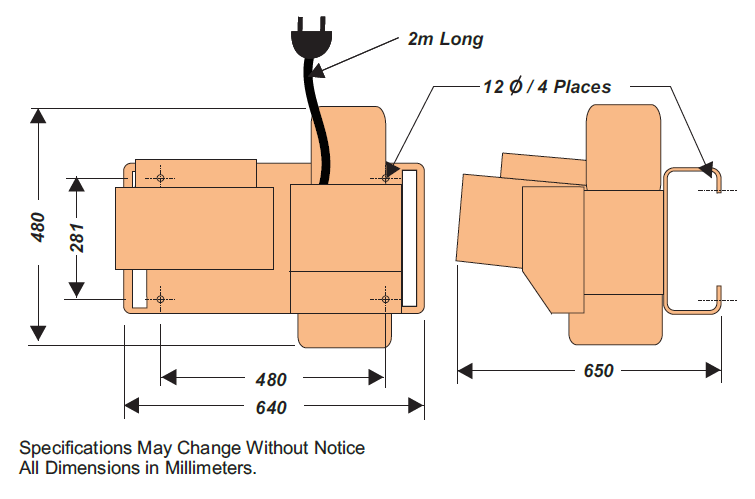

Dimensions (mm)600x420x650 mm
Weight (kg without Dies & Oil)190
Supply (Volts)110 - 220 VAC
Supply (Amps)30 - 15
Power (kW)2.2
Rated Pressure (bar)300
Pump Flow Rate (L/min)4.6+4.6
Reservoir Capacity (Litres)10
Filtration (um)100
Hose Diameter Capability4"
Hose Wire Capability6, 4, 2, 1

Standard Die Set

Product Number

Range (mm)

BS50SDS

11 die sets supplied as a package to allow infinite swaging between 16 to 78mm finished swage size.

For this crimper this die set must be used in conjunction with the SP140-50 Spacer Set.

50-16

16 – 20

50-19

19 – 24

50-22

22 – 27

50-26

26 – 31

50-31

31 – 37

50-36

36 – 42

50-41

41 – 48

50-47

47 – 54

50-53

53 – 60

50-60

60 – 68

50-68

68 – 78

Spacer Set SP140-50

SP140-50

The SP140-50 Spacer Set allows for the use of more economical Type 50 die sets for swaging diameters less than 90mm. For diameters greater than 90mm, the SP140-50 Spacer Set is removed and the Type 140 die sets are used.

Products specifications
Swaging Range (mm) with Standard Die Set16 to 78
Extended Swaging Range (mm) with Optional Die(s)6.5 to 136
Max. Die Set Opening (mm + Die Set Size)55
Radial Swaging Force (kN)4100
Cycle Speed (Full Stroke-Complete Cycle sec.)25
Dimensions (mm)600x420x650 mm
Weight (kg without Dies & Oil)190
Supply (Volts)110 - 220 VAC
Supply (Amps)30 - 15
Power (kW)2.2
Rated Pressure (bar)300
Pump Flow Rate (L/min)4.6+4.6
Reservoir Capacity (Litres)10
Filtration (um)100
Hose Diameter Capability4"
Hose Wire Capability6, 4, 2, 1
